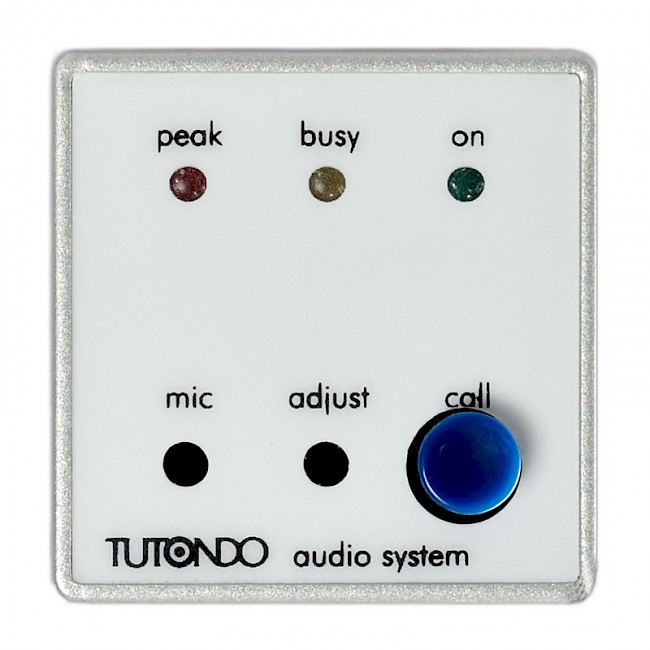

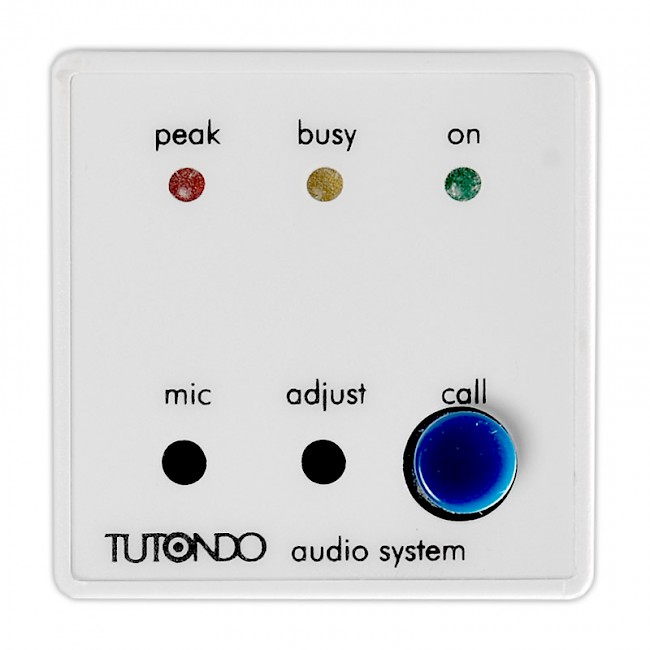

Active microphone module MC1501, for paging and general announcements overriding the background music.

Features:

• Electret type microphone
• PEAK saturation indicator
• Independent volume control with trimmer
• On/off button
• Luminous indicators for On and Line engaged
• Suitable for connecting in cascade (in-out) when mixing with other active microphone modules or active microphone stands
• Maximum output signal 12 Vpp
• Low impedance output circuit

Power supply: 24 Vdc

Dimensions: 35x35x50 mm

NOTES: the module is compatible with electrical mounting boxes and cover plates, it can be installed on rectangular or round or square boxes, using one of the specific command adapters.
