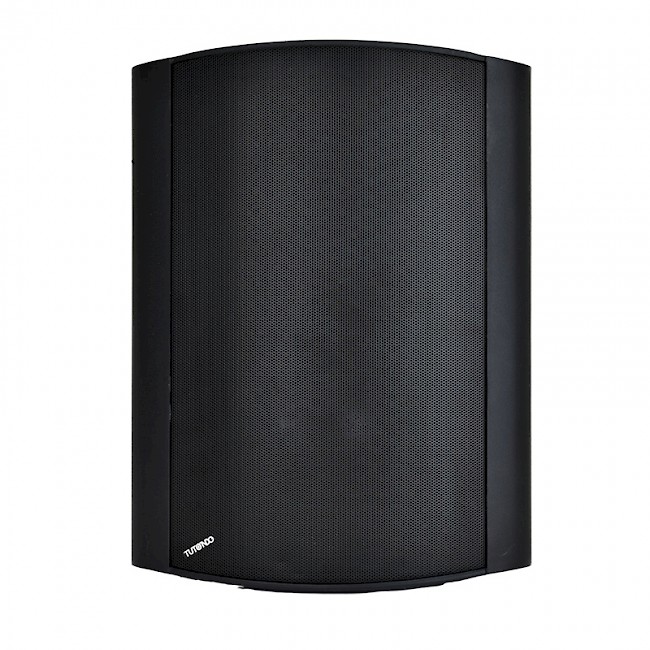

Two-way bass reflex loudspeaker for professional applications.
Click on the type below for more details and variants
| System | 8 Ω Hi-Fi |
|---|---|
| Power Wrms |
100 |
| Impedance ohm |
8 Ω |
| Frequency range Hz | 60÷20000 |
| SPL 1W/1m |
88dB |
| SPL MAX |
108dB |
| Coverage angle degrees |
120°x90° |
| Weight kg |
7.3kg |
| Dimensions mm |
H359 x W271 x D250mm |
| System | ACTIVE |
|---|---|
| Power Wrms |
30 |
| Impedance ohm |
L-27000 Ω |
| Frequency range Hz | 70÷20000 |
| SPL 1W/1m |
88dB |
| SPL MAX |
102dB |
| Coverage angle degrees |
120°x90° |
| Weight kg |
7.5kg |
| Dimensions mm |
H359 x W271 x D250mm |
| System | 100V-80 Ω |
|---|---|
| Power Wrms |
46-24-12 |
| Impedance ohm |
217-416-833-(80) Ω |
| Frequency range Hz | 60÷20000 |
| SPL 1W/1m |
87dB |
| SPL MAX |
103dB |
| Coverage angle degrees |
120°x90° |
| Weight kg |
8.2kg |
| Dimensions mm |
H359 x W271 x D250mm |
| System | 100V-80 Ω |
|---|---|
| Power Wrms |
120-60-40 |
| Impedance ohm |
83-166-250 Ω |
| Frequency range Hz | 60÷20000 |
| SPL 1W/1m |
87dB |
| SPL MAX |
107dB |
| Coverage angle degrees |
120°x90° |
| Weight kg |
10,3 |
| Dimensions mm |
H359 x W271 x D250mm |
| System | 8 Ω Hi-Fi |
|---|---|
| Power Wrms |
200 |
| Impedance ohm |
8 Ω |
| Frequency range Hz | 70÷20000 |
| SPL 1W/1m |
92dB |
| SPL MAX |
115dB |
| Coverage angle degrees |
120°x90° |
| Weight kg |
7.3kg |
| Dimensions mm |
H359 x W271 x D250mm |
On-wall or shelf acoustic speaker for professional applications. 100W full range two-way loudspeaker system with 8" woofer in bass reflex box and dome tweeter with a crossover frequency of 3 kHz and Butterworth filtering at 18 dB/octave.
