Slim line cabinet, 5 total inputs RD511 for Hi-Fi sound diffusion, stabilized power supply 24 Vdc / 6.5 A.
The central unit has a 4-input mixer (3 line-level and 1 mic-level).
For both zones output signals can be 1 V rms (in order to drive power amplifiers) or 12 Vpp (in order to drive Tutondo active loudspeakers) or 5 W / 8 ohm (in order to drive passive 8 ohm loudspeakers).

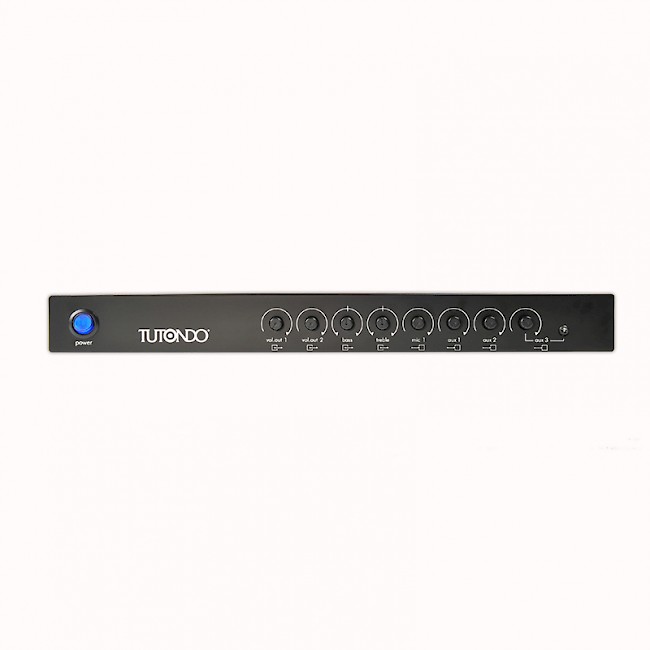

Front panel includes controls for:
indipendent zones volume, bass – treble, input levels.

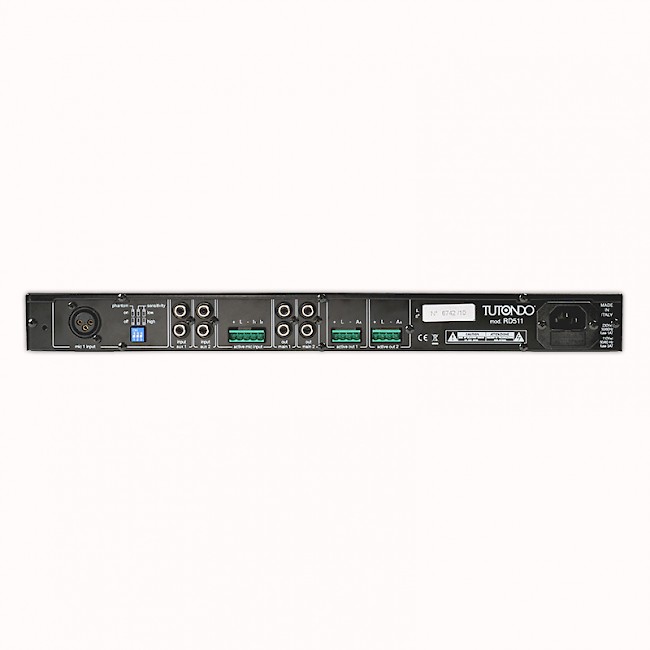

Features:

  • 2 line-level AUX inputs, 500 mV sensitivity, RCA connectors (CD/DVD players, TUNERS, HDD players, MP3 players, PC’s, SAT RECEIVERS, etc)
  • 1 line-level AUX input (CD/DVD players, TUNERS, HDD players, MP3 players, PC’s, SAT RECEIVERS, etc); 500 mV sensitivity; JACK 3.5 mm stereo connector
  • 1 mic-level input, with phantom power supply and sensitivity selector XLR connector
  • 1 active-level 2-zone selection input (MCZ501, MCZ505, MC1501, etc), 12 Vpp sensitivity
  • Output signals: line-level 1 V rms, active-level 12 Vpp or 5W/8Ohm.
  • Mixer controls: zones volumes, bass – treble, input levels. Internal power supply: 24 Vdc / 6.5 A, electronically protected and stabilized, suitable for driving N°20 mod 508/530-10 loudspeakers or N°50 mod 503 loudspeakers or N°10 mod 530-20 loudspeakers or N°7 mod 530-30 loudspeakers

Suitable for standard 19’’ rack mounts installation (using optional accessories), rack size 1 unit.


Power supply: 110-230 Vac, 50÷60 Hz

Color: Black

Dimensions: H 44 x W 427 x D 325 mm

Weight: 4 kg
