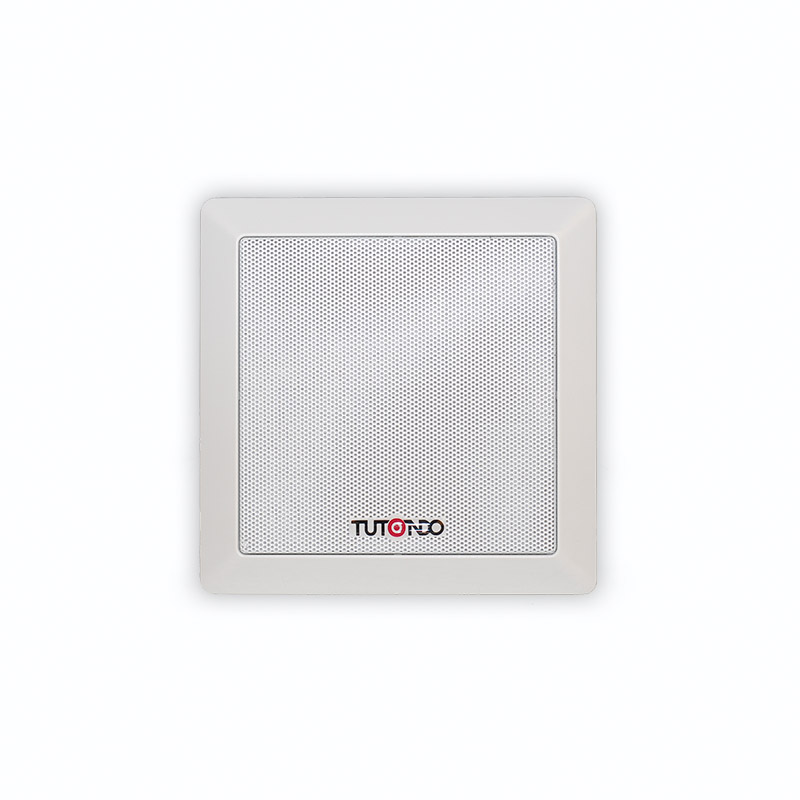

Squared compact in-wall or in-ceiling fullrange or satellite loudspeaker.
Installable in gypsum ceilings or walls or in brick walls with 506Q (3+3) boxes (box not included).
Click on the type below for more details and variants
| System | 8 Ω |
|---|---|
| Power Wrms |
30 |
| Impedance ohm |
8 Ω |
| Frequency range Hz | 110÷14000 |
| SPL 1W/1m |
83dB |
| SPL MAX |
98dB |
| Coverage angle degrees |
160° |
| Weight kg |
- |
| Dimensions mm |
H119,2 x W119,2 x D8 + 48 mm |
| System | ACTIVE |
|---|---|
| Power Wrms |
10 |
| Impedance ohm |
27 kΩ |
| Frequency range Hz | 110÷14000 |
| SPL 1W/1m |
- |
| SPL MAX |
93dB |
| Coverage angle degrees |
160° |
| Weight kg |
- |
| Dimensions mm |
H119,2 x W119,2 x D8 + 48 mm |
| System | T3 - 80 Ω |
|---|---|
| Power Wrms |
10 |
| Impedance ohm |
80 Ω |
| Frequency range Hz | 110÷14000 |
| SPL 1W/1m |
83dB |
| SPL MAX |
93dB |
| Coverage angle degrees |
160° |
| Weight kg |
- |
| Dimensions mm |
H119,2 x W119,2 x D8 + 48 mm |
| System | 100V EN54-24 |
|---|---|
| Power Wrms |
6-3-1,5 |
| Impedance ohm |
2000 - 4000 Ω |
| Frequency range Hz | 120÷20000 |
| SPL 1W/1m |
85dB |
| SPL MAX |
93dB |
| Coverage angle degrees |
160° |
| Weight kg |
0,30 kg |
| Dimensions mm |
H119,2 x W119,2 x D8 + 48 mm |
Compact in-wall or in-ceiling fullrange or satellite loudspeaker, 2,5" woofer, 30W. Installable in gypsum ceilings or walls. Frequency response 119 Hz – 18 kHz.
System dispersion on mid frequencies: 160°. Sensitivity: 83 dB 1W/1m. SPL at maximum power: 98 dB/1m. Nominal impedance: 8 ohm.
Dimensions cut-hole: 98x75,2 mm.
Colour: white B, Black N, Chrome metal (silver) MC.
