Rectangular recessed acoustic speaker
with the greatest visual discretion (FRAMELESS only 5 mm thickness)
Click on the type below for more details and variants
| System | 8 Ω Hi-Fi |
|---|---|
| Power Wrms |
50 |
| Impedance ohm |
8 Ω |
| Frequency range Hz | 70÷20000 |
| SPL 1W/1m |
86dB |
| SPL MAX |
103dB |
| Coverage angle degrees |
140° |
| Weight kg |
1.6kg |
| Dimensions mm |
290 x 183 |
| System | ACTIVE |
|---|---|
| Power Wrms |
30-20-10 |
| Impedance ohm |
500-1k-2 kΩ |
| Frequency range Hz | 70÷20000 |
| SPL 1W/1m |
86dB |
| SPL MAX |
100dB |
| Coverage angle degrees |
140° |
| Weight kg |
1.6kg |
| Dimensions mm |
290 x 183 |
| System | 100V Hi-Fi |
|---|---|
| Power Wrms |
24-12-6 |
| Impedance ohm |
416-833-1666 Ω |
| Frequency range Hz | 70÷20000 |
| SPL 1W/1m |
85dB |
| SPL MAX |
99dB |
| Coverage angle degrees |
140° |
| Weight kg |
1.7kg |
| Dimensions mm |
290 x 183 |

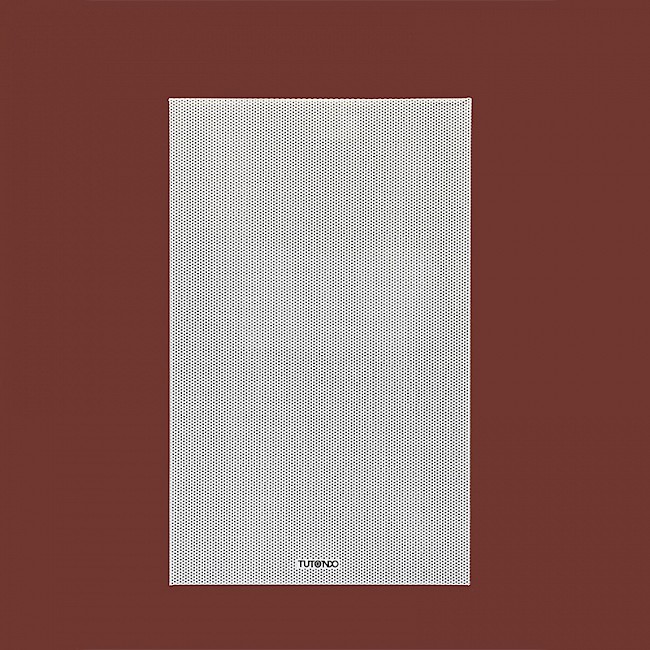

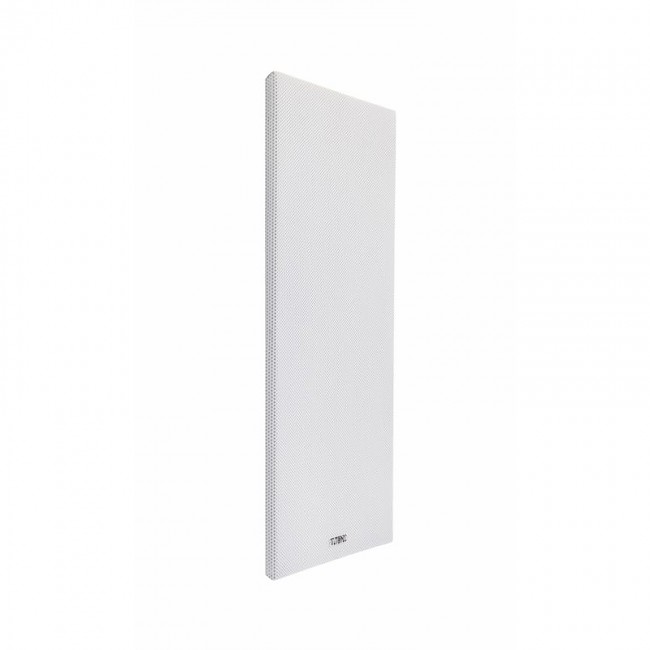

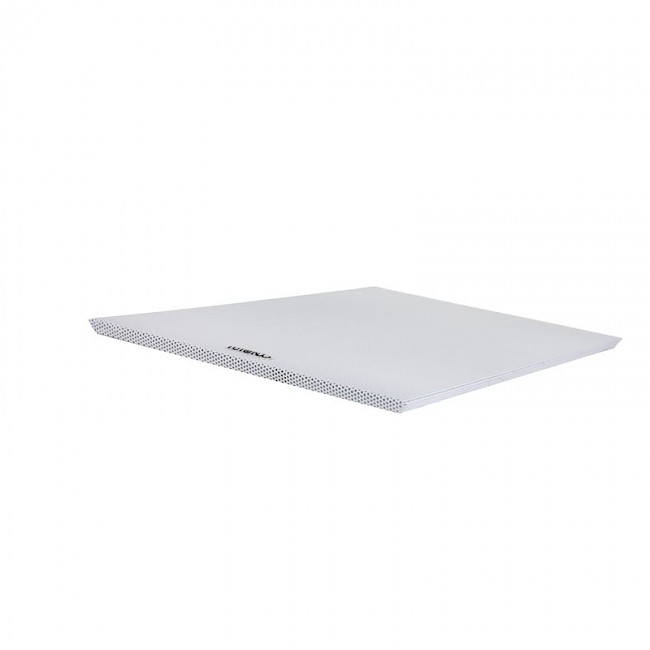

Rectangular recessed acoustic speaker with the greatest visual discretion, frameless.
Plastic Free, flush mounting with protective metallic grille.
Suitable for ceiling or wall installation, on plasterboard using the supplied screws; it is also possible to install on masonry using the CF2D flush-mounted box (not included).

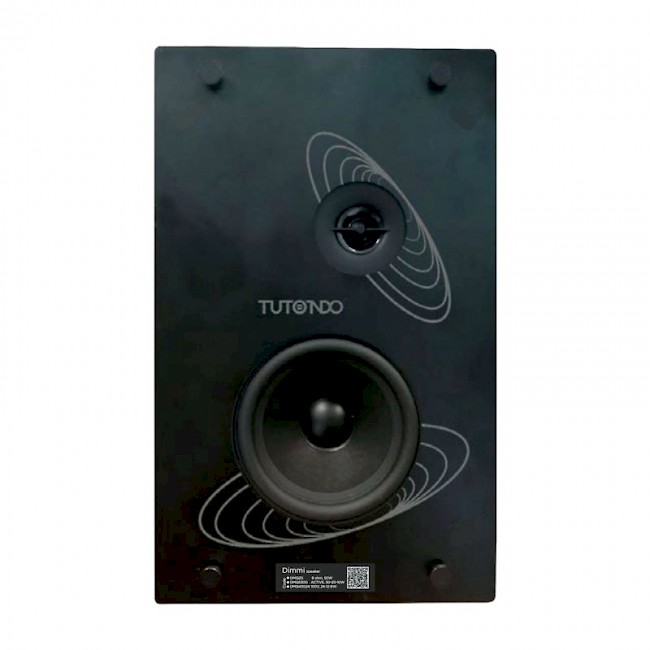

Two-way broadband speaker, with 4" semicircular soft suspension woofer and dome tweeter, 50 W, 8 ohm.
To be completed with micro-perforated metal mesh in white, black, metal chrome.
Recessed dimensions: 275x145x60 mm
Plasterboard recessed hole dimensions: 250x120x60 mm
Net dimensions: 290x183x6 mm
Body dimensions: 276x170 mm
Dimensions with net: 290x183 mm
