Wireless microphone kit UXD-100UF-M for professional and generic applications.
UHF true diversity receiver, handheld transmitter and 40 selectable frequency channels (8 different channels/frequencies usable at the same time).

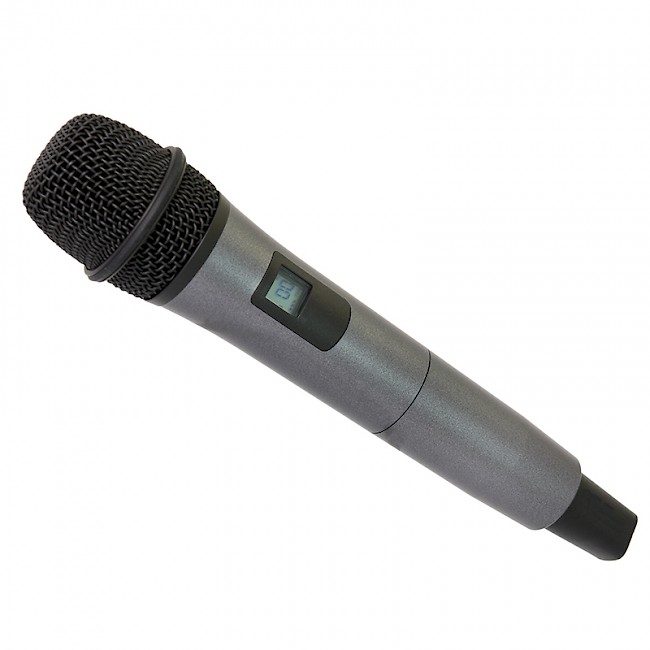

Handheld transmitter:

  • With low or flat battery LED indicator
  • Push button switch
  • Transmission channel selector

Power supply: alkaline battery  (2 x 1,5 Vdc AA type).

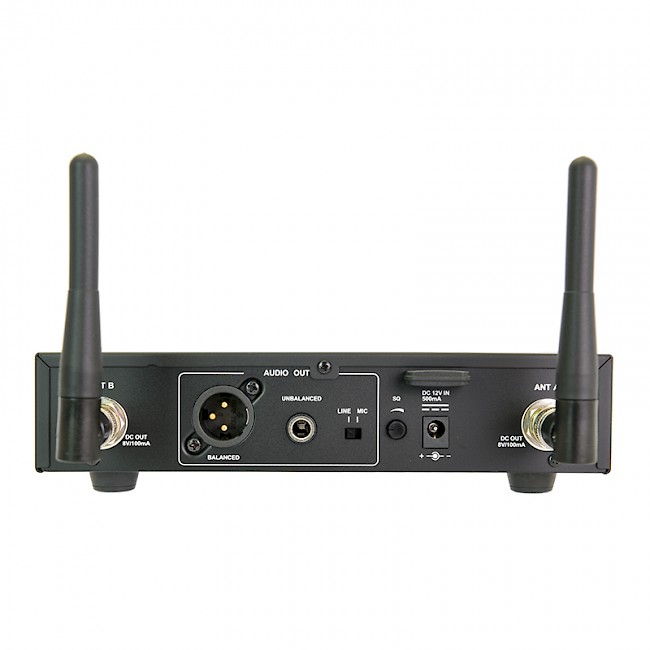

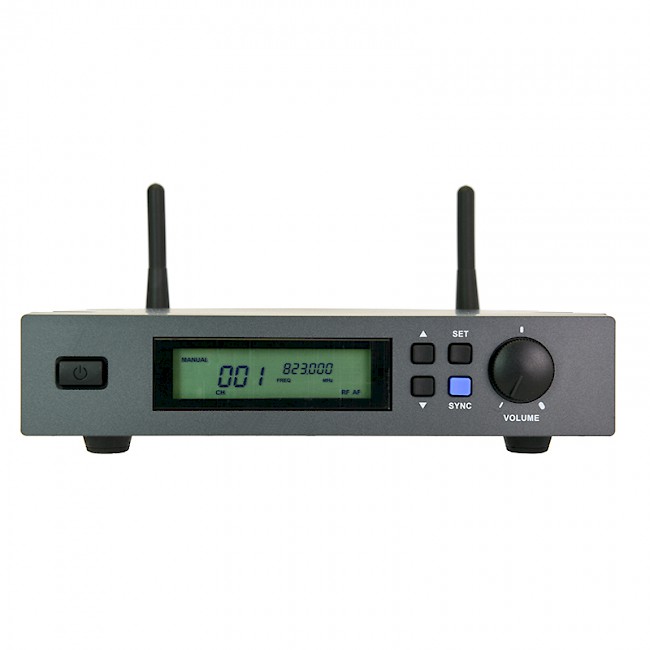

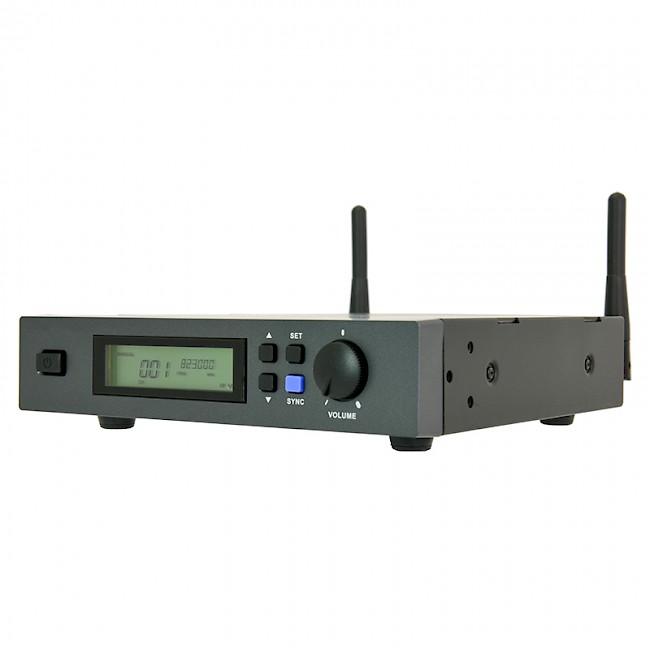

Receiver:

  • True diversity complete with 2 antennas with BNC connectors
  • Balanced output via XLR socket or unbalanced via 6,3 mm Jack
  • Mic or Line level selector
  • Output level potentiometer and Squelch
  • Frequency selection buttons and LED indicator of channel number selected
  • Audio output level signal and frequency indicators
  • Frequency response: 80 Hz - 18 kHz.
  • General on-off switch
  • Vdc output for transmitter battery charger

External power supply 230 Vac / 12 Vdc (included).

​
