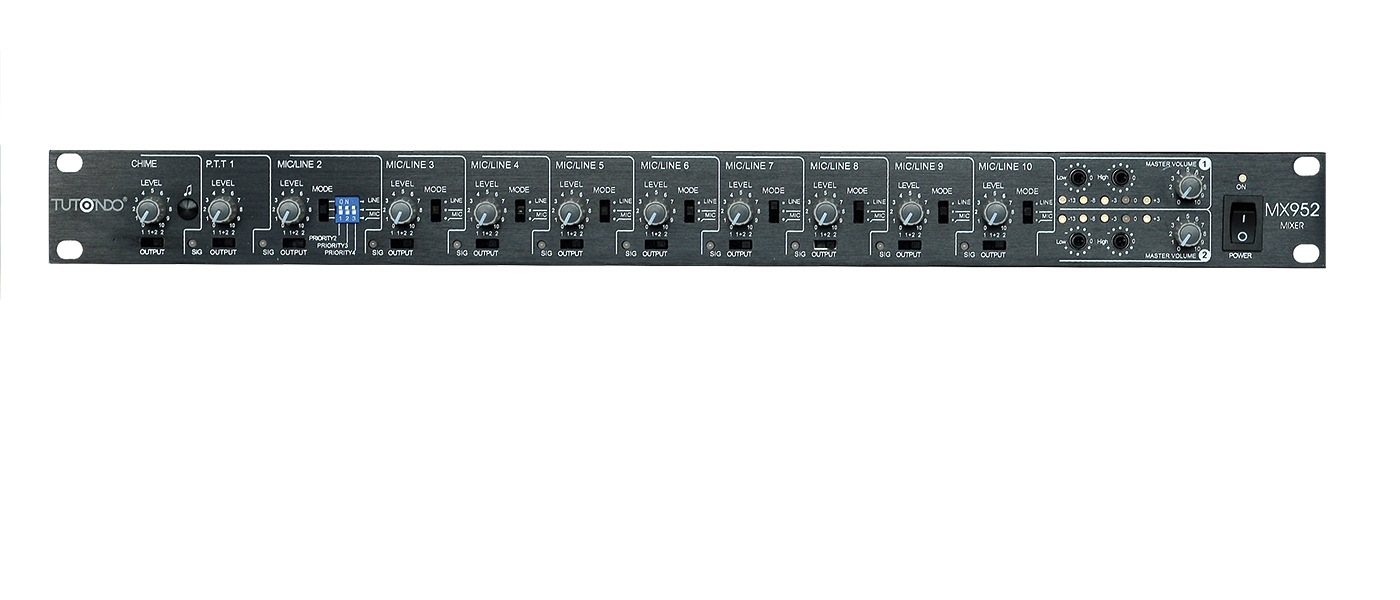

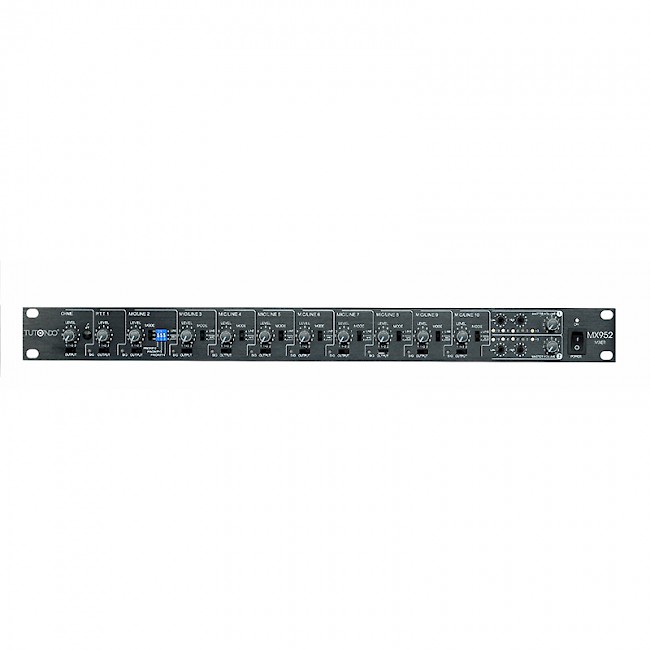

Professional mixer preamplifier MX952

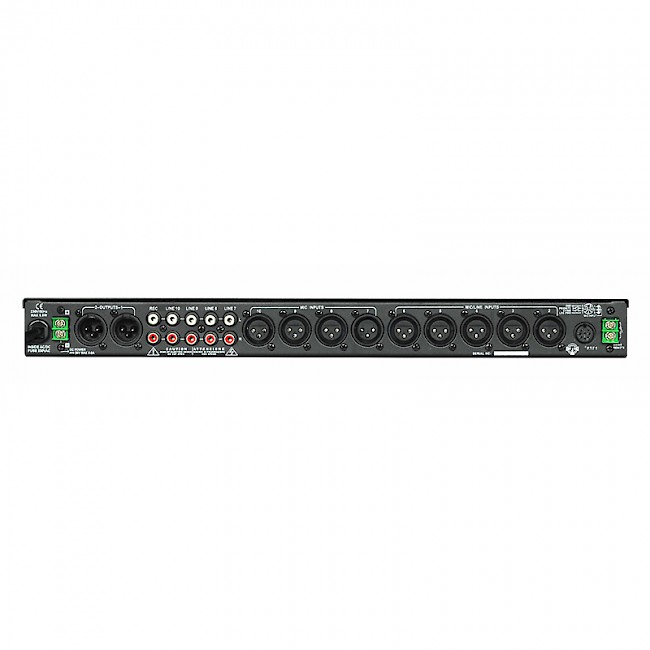

• 9 MIC inputs (XLR sockets)
• 4 AUX inputs (RCA sockets)
• 1 CHIME input with priority (RCA socket)
• 1 REC out (RCA socket)
• 1 LINE out (balanced XLR plug)

Automatic priority of the inputs:

• CHIME input: maximum priority over all the inputs
• MIC 2 input with priority switch
• selectable Phantom power supply for each MIC input

Inputs sensitivity:

• MIC 1-5: 0,4 mV on 600 ohm, balanced
• AUX 1-5: 300 mV on 47 Kohm
• CHIME: 700 mV on 10 Kohm

Output signals:

• REC: 1 Vrms
• LINE OUT: 1,2 V on 600 ohm, balanced

Frequency Response: 50 Hz - 20 kHz
Bass and treble control: +/- 12 dB at 100 Hz. ; +/- 12 dB at 10 kHz

Colour: black

Power supply: 230 Vac and 24 Vdc

Dimensions: 44 x 483 x 290 mm
Weight: 4 kg
