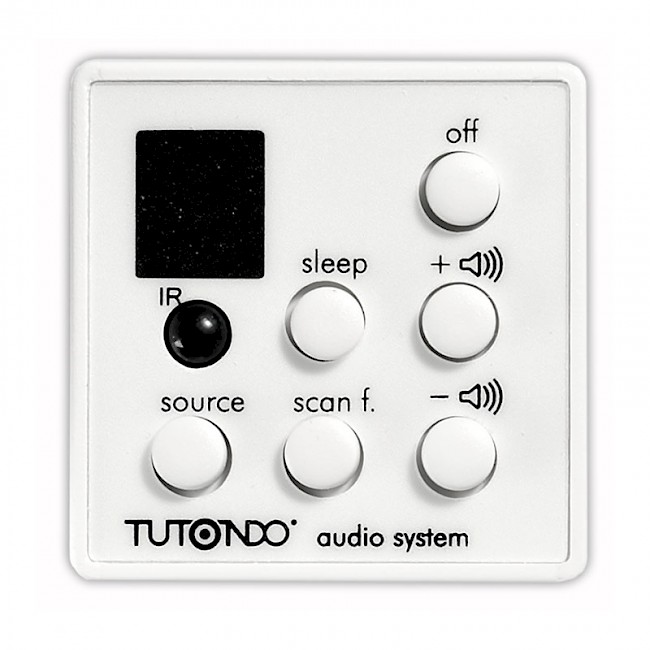

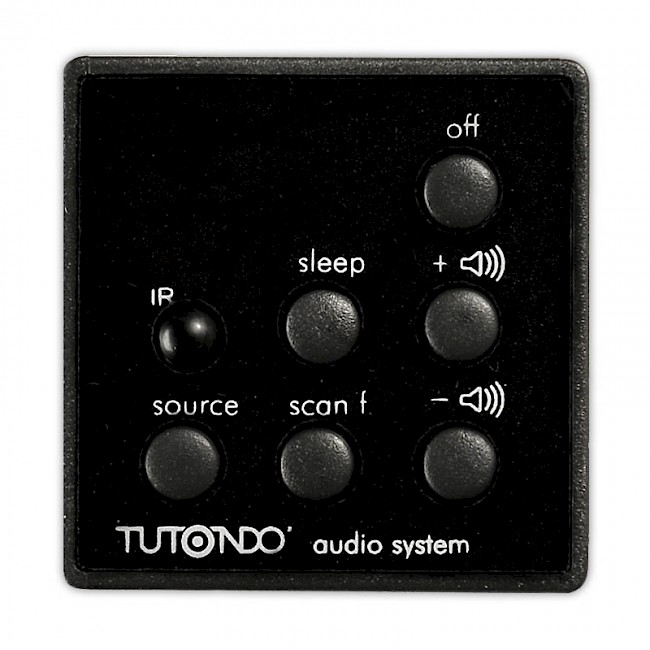

Digitally controlled remote control unit CZ83.
Allows selection of video-audio sources and regulation of ambient audio parameters.

Main functions:

• Zone on/off
• Source selection
• Volume, bass, treble and balance control
• Timer for sleep function (for swithing off automatically after a preset time interval)
• 7 segments display showing selected source and function control
• Automatic power-up device for alarm paging
• Sleep timer for automatic power-down after a preset time

Built-in IR receiver for the total control of all the zone parameters and A/V sources functions (sources equipped with STIF devices) through IR remote control.

Several control units can be installed in the same zone.

Power supply: 24 Vdc

Dimensions: 35 x 35 x 50 mm

NOTES: the module is compatible with electrical mounting boxes and cover plates, it can be installed on rectangular or round or square boxes, using one of the specific command adapters.
