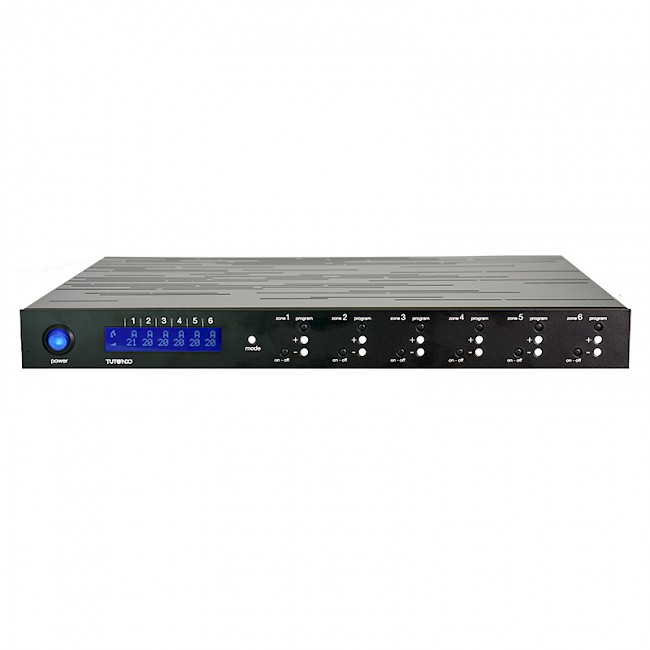

MTA561 "Slim line" type control unit for Hi-Fi sound systems of 6 independent zones, with 8 general audio inputs + 6 zone locales, complete with 7A stabilized power supply.

The control unit is able to supply the signal for each zone for driving Tutondo active speakers or power amplifiers.
It supports the protocols: KNX (with GKT503), Modbus over TCP / IP, Tutondo free protocol.
Digital bus for CZ83, CZ830, MZ830 zone controls.
Trigger inputs for external events (example: MIC calls).
Control app for Smartphone and tool for Windows PC.

Features:

6 RCA inputs, selectable sensitivity from 500 Vrms to 2 Vrms.
2 terminal inputs, sensitivity 1Vrms - 4.2 Vrms, for audio sources or general or selective microphone messages on 6 zones.
1 local zone input (6 in total), sensitivity 1Vrms - 4.2 Vrms.
6 outputs: MONO audio signal, unbalanced or balanced 1 Vrms / standard 12 Vpp signal.
6 trigger inputs for external scenarios / events.
Battery-powered clock / calendar for events scheduled according to weekly tables.
LCD display with indication, for each output, of: on / off status, program, volume, high tones, low tones.
Direct keys for the control of the 6 zones.

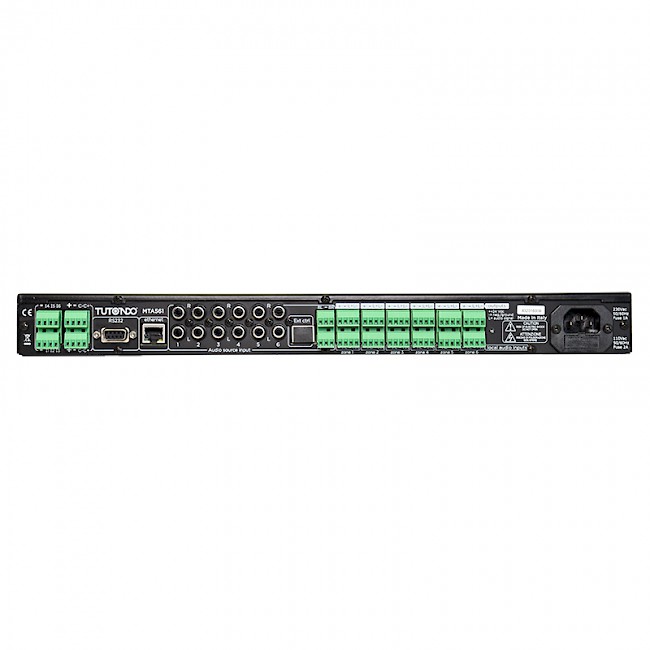

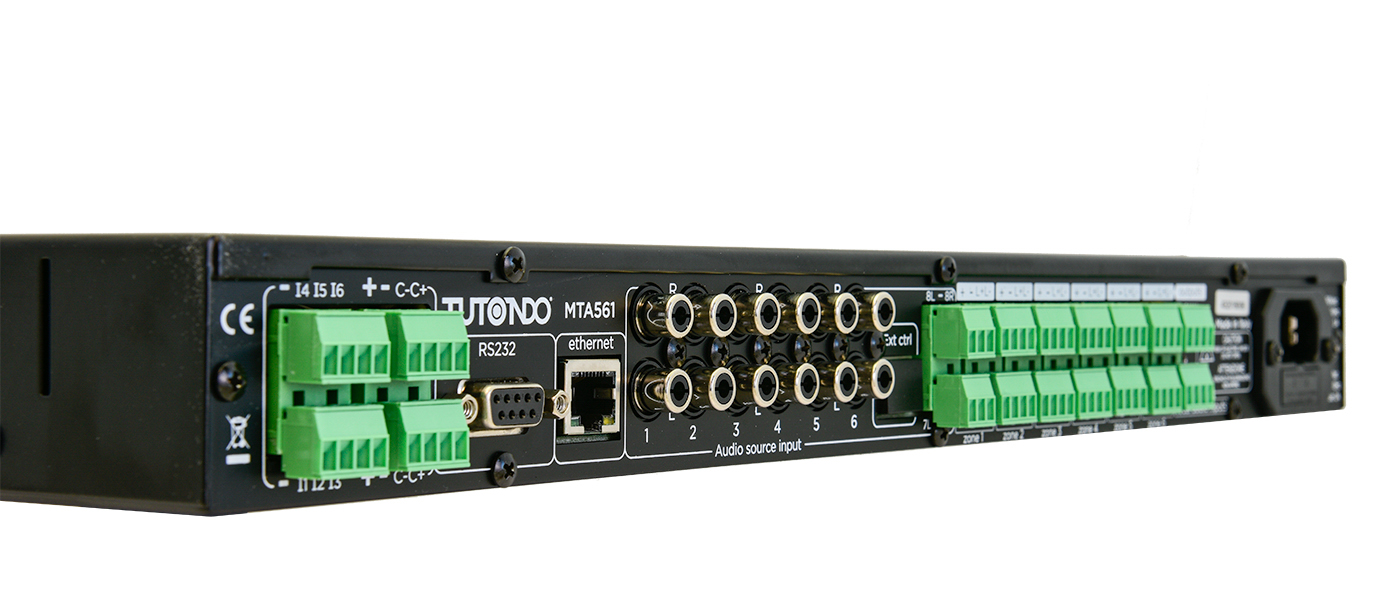

Ports: Ethernet, RS232, digital bus for zone commands.
LiveMT control app (Apple and Android).
“ProgMT” programming tool and “simplyMT” control tool for Windows PC.
Stabilized internal power supply, low noise, with electronic protection, 24 Vdc 7 A (suitable for powering 20 amplified speakers type 508 / 530-10, 50 type 503, 10 type 530-20 or 7 type 530-30).

It can be installed on standard 19 ”rack furniture with a special accessory; footprint 1 unit.
Power supply: 110 ÷ 230 Vac, 50 ÷ 60 Hz.
Black colour.
Dimensions: H 44 x W 427 x D 325 mm.
Weight: 4 kg.
