Central unit MTA816, for controlling and managing the multiroom audio broadcasting system.
The unit is equipped with 9 audio inputs (8 centralized + 1 local audio input for each zone).
It can manage 6 zones which can be extended up to 48 by adding up to 7 expansion units MTAE816.

The main unit is equipped with a powerful microprocessor which enables the digital control of all the zone parameters both centrally by means of the front panel and through remoted control units.

Functions supported:

  • zone and source on/off
  • source selection
  • volume control
  • bass and treble, balance
  • mute
  • loudness
  • sleep
  • function control for the audio sources equipped with STIF devices

The control unit has further features that makes it extremely flexible:

  • e.g. room name customization
  • stereo or mono output configuration
  • programmable weekly alarms
  • paging management from paging station
  • up to 14 programmable priority levels relating to the inputs for managing music
  • microphones (general paging and alarm messages)
  • pre-recorded messages (for providing information or alarms) with DAP90 external player.

The main unit is equipped with Ethernet and RS232 interfaces and can be controlled by PC using suitable software, from Smartphone or Tablet (app Live MT),or interfaced with any advanced home automation system; it is ideal for scenarios and events that are started via software or simply by programmable triggers.

  • Programmable audio matrix digitally controlled by a 32 bit processor
  • Firmware can be updated through Ethernet interface
  • Internal clock and date are updated even without power supply

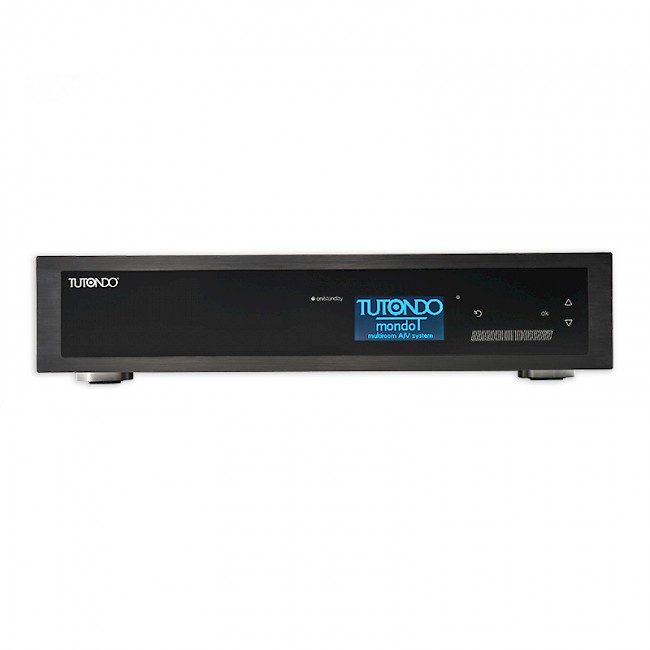

  • Monochromatic LCD graphic display with adjustable color backlighting (RGB)
  • Menu-based controls with touch keys for: OK/Cancel, Up/Down and Slider for changing settings
  • Rapid access to the most often used functions via the front panel: on/off, source selector, volume control
  • Supported languages: English, Italian

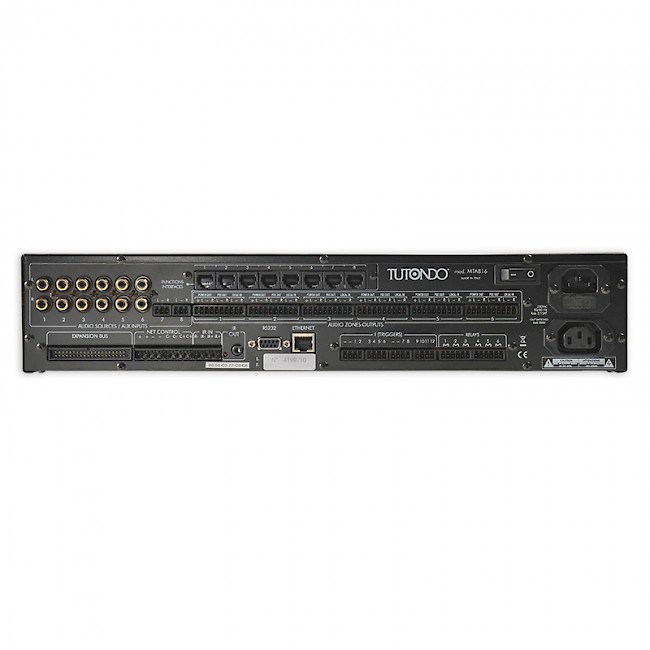

  • 8 stereo audio AUX inputs (CD, DVD, HD, SAT, TUNER, etc....) Input impedance 47 kohm, comprising:
    - 6 stereo inputs with gold-plated RCA PIN; Sensitivity selectable from 0.5 to 2 V rms
    - 2 stereo inputs with removable terminals; Sensitivity selectable from 1 to 4.25 V rms
  • 1 local stereo audio input for each zone. Input impedance 270 ohm, sensitivity from 1 to 4.25 V rms
  • 6 amplifi ed stereo outputs 11+11 W rms on 4 ohm, active signal 12 Vpp standard for active speakers with removable terminals
  • 6 Line Out type stereo output terminals, 1 V rms level
  • 8 sockets for extra STIF function control devices

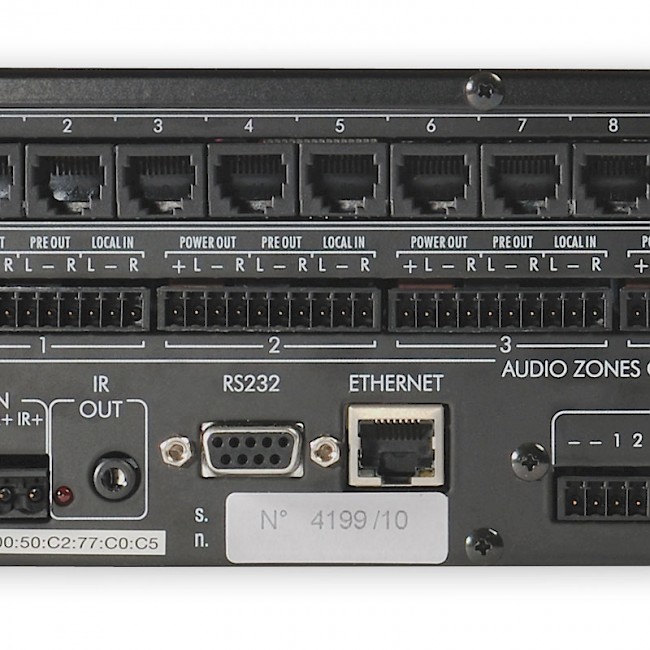

  • 1 RJ45 Ethernet interface connector
  • 1 DB9 RS232 interface connector
  • Bus connector for expansions (up to 7 for a total of 48 zones)
  • Built-in stabilized power supply, low noise, short-circuit protection, 24 Vdc
  • 12 trigger inputs, normally-open contacts for external events
  • 6 programmable relay outputs for general purposes

Suitable for installation on standard 19” rack units; 2 rack units (using GRK2U supports).


Power supply: 110÷230 Vac 50÷60 Hz

Dimensions: H 88 x W 430 x D 320 mm

Weight: 6.3 kg

Colour: Black



PC-SOFTWARE

  1. SIMPLY MT: Software for controlling via a PC. For use with Windows 2000 or later. The software allows to control the main audio parameters of each zone: volume; bass and treble; balance; source selection; function control; sleeping; mute; on-off; name of zone or room; name of sound source.
  2. PROG MT: Software to program systems via PC. For Windows 2000 and later versions.
