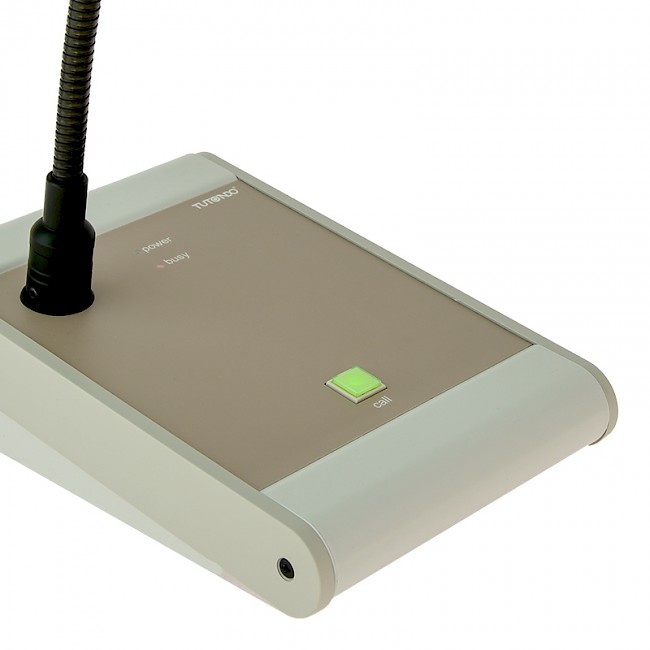

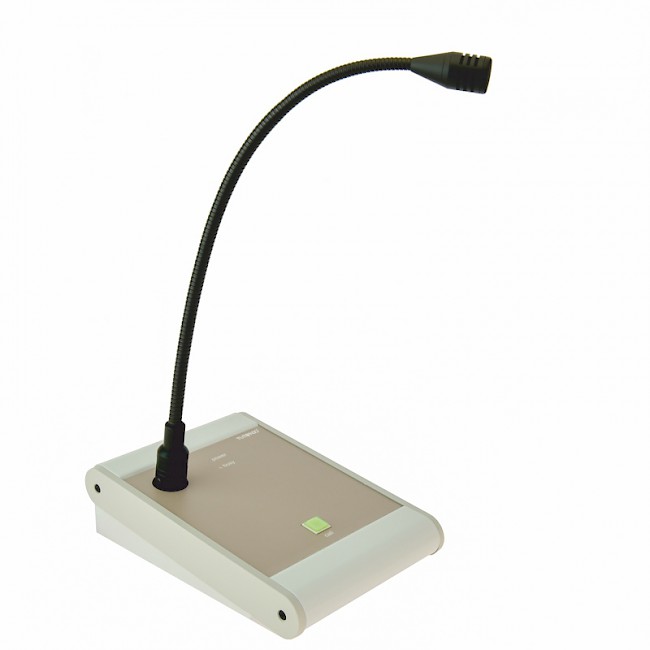

The MCC501 paging station allows you to make calls with priority over the background music.
Equipped with a "gong" type warning signal generator, the MCC501 microphone base allows the parallel connection of several mixed stations.
The low impedance output with 12 Vpp audio signal is particularly suitable for long distance connections.

Main features

• Dynamic microphone, cardioid directivity
• Built-in Gong/chime generator
• Microphone and chime volume adjustment
• Led “BUSY” line busy signaling
• Led “POWER”
• Audio signal output: 12 Vpp
• Connection type: in parallel
• Integrated warning signal generator (Gong/chime)
• Frequency response: 60 Hz÷15.000 Hz
• Power supply: 24 VDC, 100mA max.
• Dimensions: H50 x L125 x D185 mm (microphone excluded)
• Weight: 0,97 kg.
