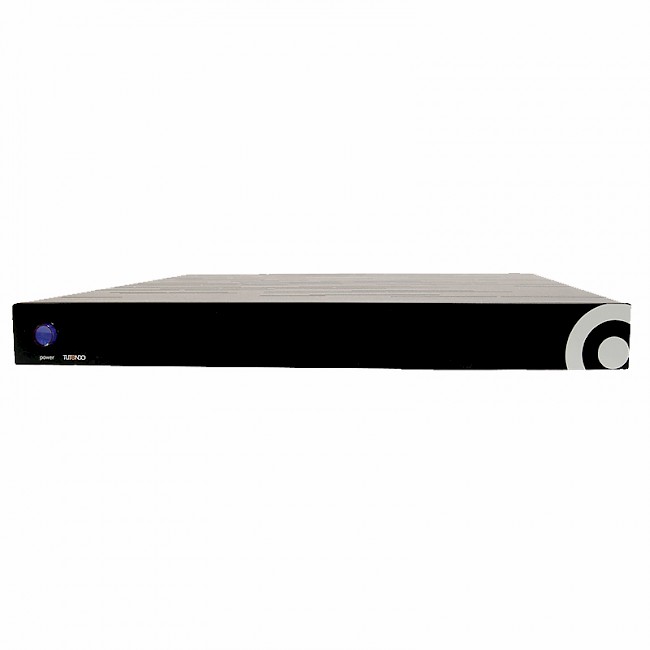

Stabilized power supply ALD516.

Main features:

• stabilized built-in power supply, low noise, 24 Vdc
• 7 A output current
• automatic electronic overload and short-circuit protection

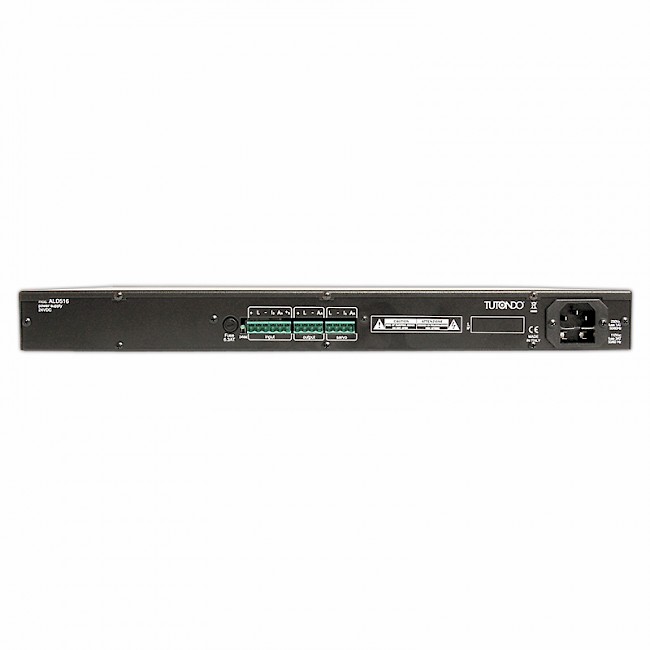

• input for remote activation with positive voltage 24 Vdc or contact to the negative
• main power switch with indicator light
• LED status indicators (mains power on, 24 Vdc output enabled)


Power supply: 110/230 Vac, 50/60 Hz

Colour: Black

Dimensions: H44 x W430 x D325 mm

Weight: 3,3 kg


NOTES: the power supply can handle up to 20 active speakers type 508 or 50 speakers type 503 or 7 speakers type 530, 24 Vdc output using the optional accessories, it is suitable for installation on standard 19" rack mounts, the overall size is 1 rack unit
