Rectangular recessed acoustic speaker with the greatest visual discretion (FRAMELESS only 5 mm thickness)
Made of plastic material, for flush mounting with protective metallic net.
Two-way broadband speaker, with 6,5’’ semicircular soft suspension woofer and dome tweeter.
Auf das Modell klicken, um das Datenblatt zu sehen
| System | 8 Ω |
|---|---|
| Wrms leistung | 50 |
| Impedanz ohm |
8 Ω |
| Frequenzgang Hz |
70÷20000 |
| SPL 1W/1m |
88dB |
| SPL MAX |
104dB |
| Abstrahlung Grad |
140° |
| Gewicht kg | 1.6kg |
| Größe mm |
H316 x B196 x T82mm |
| System | ACTIVE |
|---|---|
| Wrms leistung | 30-20-10 |
| Impedanz ohm |
500-1k-2 kΩ |
| Frequenzgang Hz |
70÷20000 |
| SPL 1W/1m |
90dB |
| SPL MAX |
100dB |
| Abstrahlung Grad |
140° |
| Gewicht kg | 1.6kg |
| Größe mm |
H316 x B196 x T82mm |
| System | 100V-80 Ω |
|---|---|
| Wrms leistung | 12-6-3 |
| Impedanz ohm |
833-1666-3333-(80) Ω |
| Frequenzgang Hz |
70÷20000 |
| SPL 1W/1m |
88dB |
| SPL MAX |
96dB |
| Abstrahlung Grad |
140° |
| Gewicht kg | 1.8kg |
| Größe mm |
H316 x B196 x T82mm |
| System | 100V-80 Ω |
|---|---|
| Wrms leistung | 24-12-6 |
| Impedanz ohm |
416-833-1666-(80) Ω |
| Frequenzgang Hz |
70÷20000 |
| SPL 1W/1m |
86dB |
| SPL MAX |
99dB |
| Abstrahlung Grad |
140° |
| Gewicht kg | 1.9kg |
| Größe mm |
H316 x B196 x T82mm |
| System | 8 Ω |
|---|---|
| Wrms leistung | 100 |
| Impedanz ohm |
8 Ω |
| Frequenzgang Hz |
70÷20000 |
| SPL 1W/1m |
85dB |
| SPL MAX |
105dB |
| Abstrahlung Grad |
140° |
| Gewicht kg | 1.6kg |
| Größe mm |
H316 x B196 x T82mm |
| System | ACTIVE |
|---|---|
| Wrms leistung | 30-20-10 |
| Impedanz ohm |
500-1k-2 kΩ |
| Frequenzgang Hz |
70÷20000 |
| SPL 1W/1m |
85dB |
| SPL MAX |
100dB |
| Abstrahlung Grad |
140° |
| Gewicht kg | 1.6kg |
| Größe mm |
H316 x B196 x T82mm |

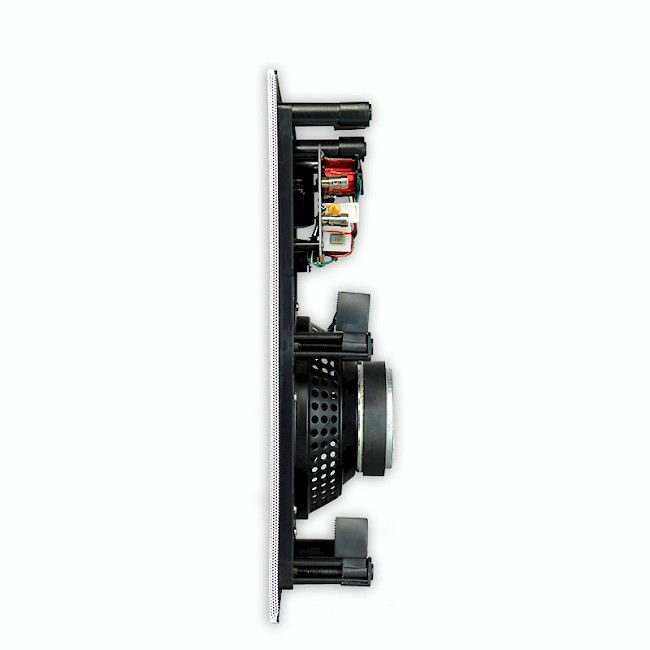

Rectangular recessed acoustic speaker with the greatest visual discretion, FRAMELESS with only 5 mm thickness.
Made of plastic material, for flush mounting with protective metallic net.
Suitable for ceiling or wall installation on plasterboard, without screws, using the fixing system supplied.
It is also possible to install on masonry using the CFVLC recessed acoustic cabinet with volume calculated for maximum acoustic performance, or the simplified CFVLS box (not included).

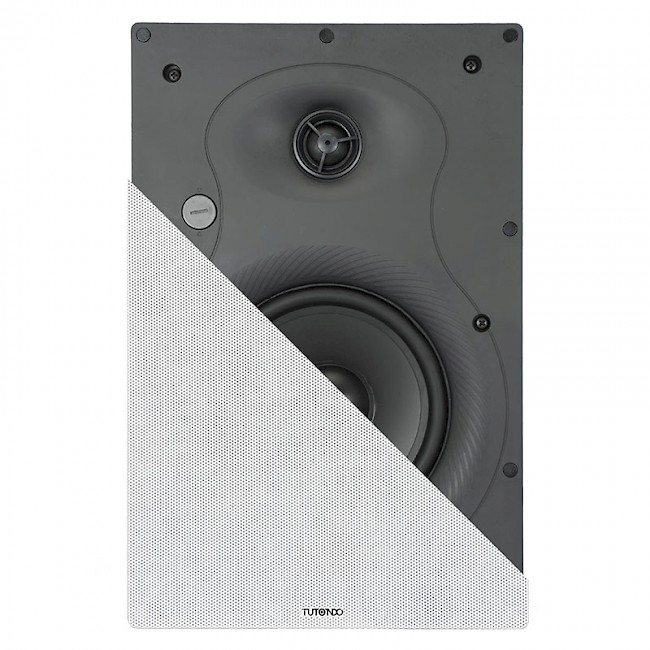

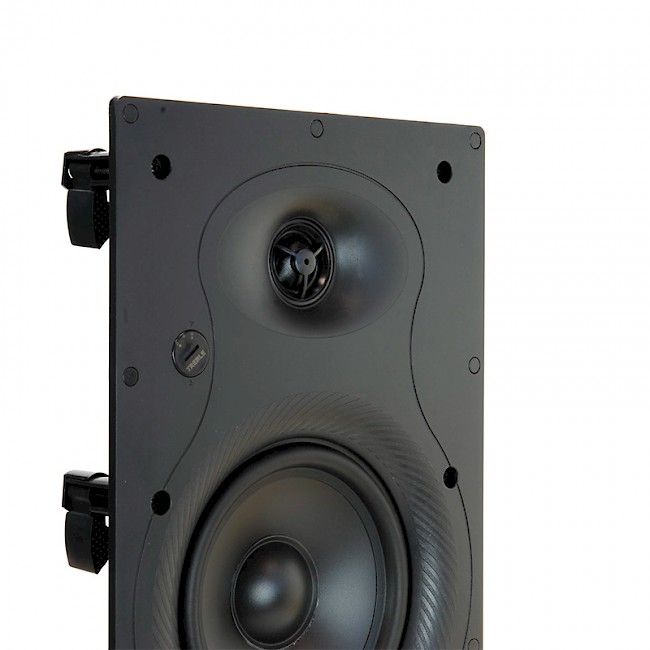

Two-way broadband speaker, with 6,5" semicircular soft suspension woofer and dome tweeter.
Cabinet: black.

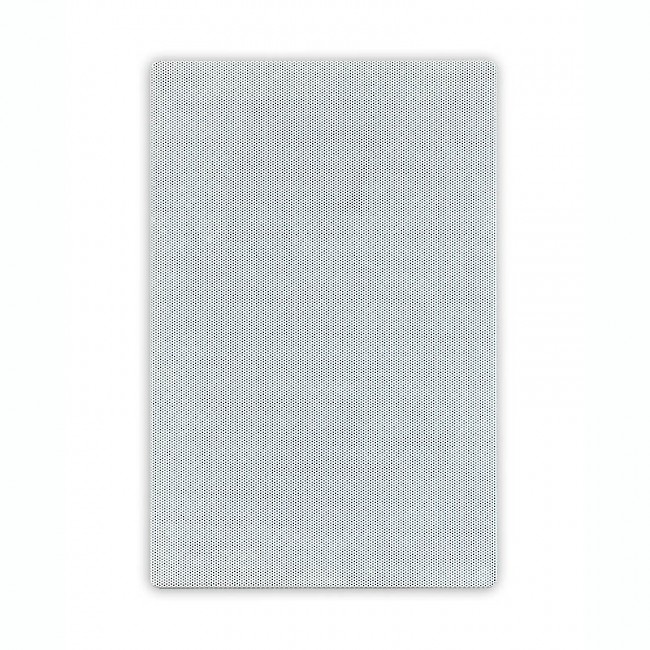

Net colour: B white.
