FRAMELESS ROUND RECESSED

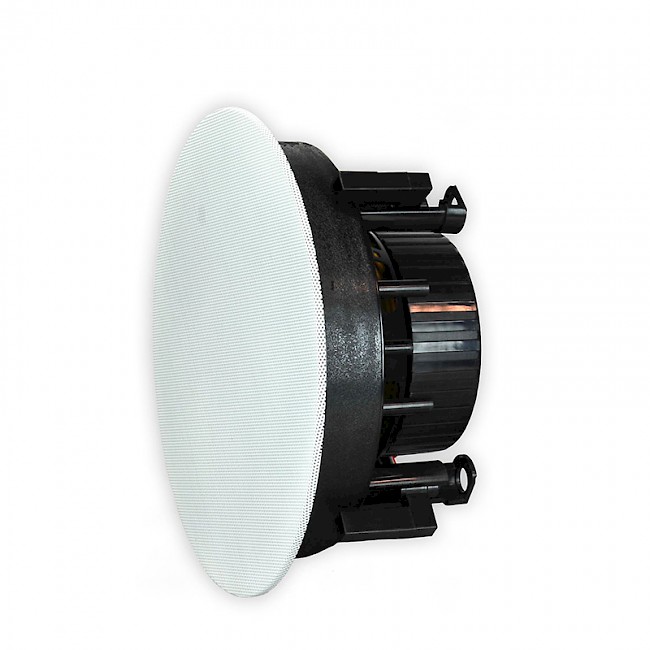

Rounded in-wall or in-ceiling loudspeaker, with the greatest visual discretion (FRAMELESS only 4 mm thickness).
Made of ABS type structure, metal protection grille. Coaxial speaker system, 2 ways, fullrange 6,5” woofer with rubber suspension, dome tweeter.
Auf das Modell klicken, um das Datenblatt zu sehen
| System | 8 Ω |
|---|---|
| Wrms leistung | 50 |
| Impedanz ohm |
8 Ω |
| Frequenzgang Hz |
49÷20000 |
| SPL 1W/1m |
87dB |
| SPL MAX |
104dB |
| Abstrahlung Grad |
140° |
| Gewicht kg | 1.6kg |
| Größe mm |
Ø 230 mm |
| System | ACTIVE |
|---|---|
| Wrms leistung | 30-20-10 |
| Impedanz ohm |
500-1k-2 kΩ |
| Frequenzgang Hz |
49÷20000 |
| SPL 1W/1m |
87dB |
| SPL MAX |
101,6dB |
| Abstrahlung Grad |
140° |
| Gewicht kg | 1.6kg |
| Größe mm |
Ø 230 mm |
| System | 100V-80 Ω |
|---|---|
| Wrms leistung | 12-6-3 |
| Impedanz ohm |
833-1666-3333-(80) Ω |
| Frequenzgang Hz |
49÷20000 |
| SPL 1W/1m |
86dB |
| SPL MAX |
97dB |
| Abstrahlung Grad |
140° |
| Gewicht kg | 1.7kg |
| Größe mm |
Ø 230 mm |
| System | 100V-80 Ω |
|---|---|
| Wrms leistung | 24-12-6 |
| Impedanz ohm |
416-833-1666-(80) Ω |
| Frequenzgang Hz |
49÷20000 |
| SPL 1W/1m |
86dB |
| SPL MAX |
100dB |
| Abstrahlung Grad |
140° |
| Gewicht kg | 1.8kg |
| Größe mm |
Ø 230 mm |
Rounded in-wall or in-ceiling loudspeaker, with the greatest visual discretion (FRAMELESS only 4 mm thickness).

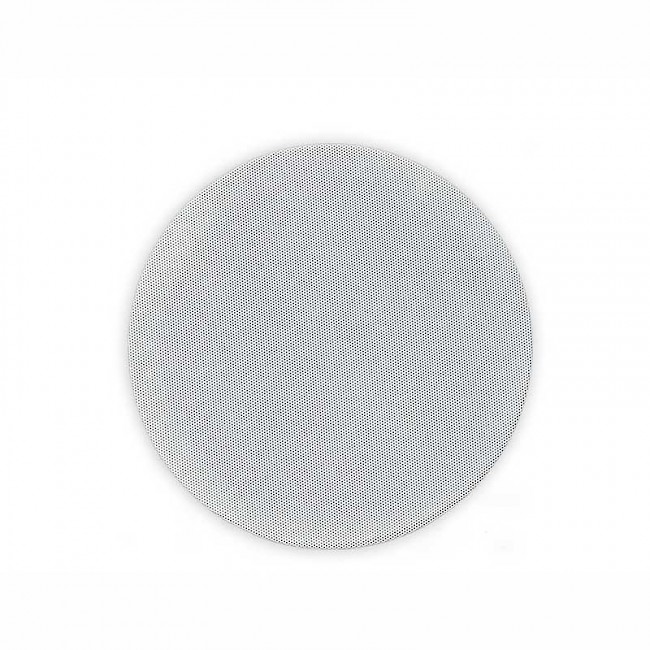

Made of ABS type structure, metal protection grille.
Suitable for ceiling installation on plasterboard, using the fixing system supplied.
Installation on masonry is also envisaged using the CFOLS flush-mounted box (not included).
Coaxial speaker system, 2 ways, fullrange 6,5" woofer with rubber suspension, dome tweeter.
Nominal impedance: 8 ohm.
Power: 50 W.
SPL max: 104 dB.
SPL 1W/1m: 88 dB.
Frequency response: 70-20000Hz. Dimensions: diam 230 mm, depth 104 mm.
Cutout: 200 mm. Weight: 1,5 kg.
Cabinet colour: black. Net colour: B white.
